NSK 6205DDU Deep groove ball bearings
Also known as : 6205DDU, 6205LLU, 6205-2RS1, 6205-2RSR
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 15 mm
- Basic dynamic load rating: 14 kN
- Basic static load rating: 7.85 kN
NSK 6205DDU

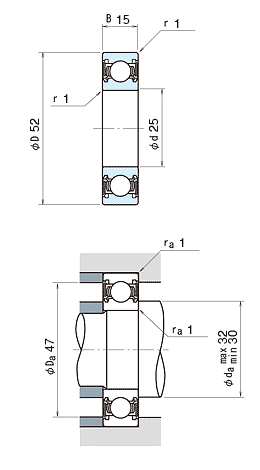

NSK 6205DDU details
| model | 6205DDU |
|---|---|
| d | 25 mm |
| D | 52 mm |
| B | 15 mm |
| rmin. | 1 mm |
| Cr | 14000 N |
| C0r | 7850 N |
| Limiting speeds | 9000 min-1 (Grease) |
| Mass | 0.129 kg (approx.) |
NSK 6205DDU bearing cross reference
302K
25 mmx 52 mmx 15 mm
301K
25 mmx 52 mmx 15 mm
62207-2RS-C3
25 mmx 52 mmx 15 mm
62306-2RS-C3
25 mmx 52 mmx 15 mm
63005-2RS-C3
25 mmx 52 mmx 15 mm
62205-2RS-C3
25 mmx 52 mmx 15 mm
62304-2RS-C3
25 mmx 52 mmx 15 mm
62204-2RS-C3
25 mmx 52 mmx 15 mm
63003-2RS-C3
25 mmx 52 mmx 15 mm
62303-2RS-C3
25 mmx 52 mmx 15 mm
63002-2RS-C3
25 mmx 52 mmx 15 mm
