NSK 6204VV Deep groove ball bearings
Also known as : 6204VV, 6204LLB, 6204-2RZ
- Inside Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 14 mm
- Basic dynamic load rating: 12.8 kN
- Basic static load rating: 6.6 kN
NSK 6204VV

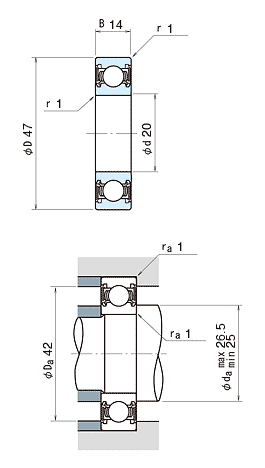

NSK 6204VV details
| model | 6204VV |
|---|---|
| d | 20 mm |
| D | 47 mm |
| B | 14 mm |
| rmin. | 1 mm |
| Cr | 12800 N |
| C0r | 6600 N |
| Limiting speeds | 15000 min-1 (Grease) |
| Mass | 0.107 kg (approx.) |
NSK 6204VV bearing cross reference
302K
20 mmx 47 mmx 14 mm
301K
20 mmx 47 mmx 14 mm
62207-2RS-C3
20 mmx 47 mmx 14 mm
62306-2RS-C3
20 mmx 47 mmx 14 mm
63005-2RS-C3
20 mmx 47 mmx 14 mm
62205-2RS-C3
20 mmx 47 mmx 14 mm
62304-2RS-C3
20 mmx 47 mmx 14 mm
62204-2RS-C3
20 mmx 47 mmx 14 mm
63003-2RS-C3
20 mmx 47 mmx 14 mm
62303-2RS-C3
20 mmx 47 mmx 14 mm
63002-2RS-C3
20 mmx 47 mmx 14 mm
