SKF 6204-2RSH

SKF 6204-2RSH Deep groove ball bearings

Also known as : 6204-2RSH, 6204-2RS, 6204DDU

Inside Diameter: 20 mm
Outside Diameter: 47 mm
Width: 14 mm
Basic dynamic load rating: 13.5 kN
Basic static load rating: 6.6 kN

SKF 6204-2RSH

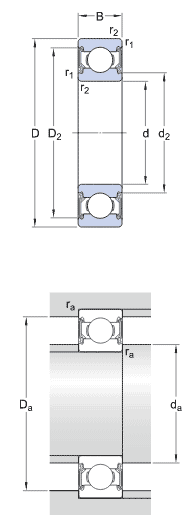

SKF 6204-2RSH details

model	6204-2RSH
d	20 mm
D	47 mm
B	14 mm
d₂	26.05 mm
D₂	40.59 mm
r_{1,2 min.}	1 mm
d_{a min.}	25.6 mm
d_{a max.}	26 mm
D_{a max.}	41.4 mm
r_{a max.}	1 mm
C_r	13.5 kN Basic dynamic load rating
C_0r	6.6 kN Basic static load rating
Limiting speed	10000 r/min
Mass	0.108 kg

SKF 6204-2RSH bearing cross reference

302K
20 mmx 47 mmx 14 mm

301K
20 mmx 47 mmx 14 mm

62207-2RS-C3
20 mmx 47 mmx 14 mm

62306-2RS-C3
20 mmx 47 mmx 14 mm

63005-2RS-C3
20 mmx 47 mmx 14 mm

62205-2RS-C3
20 mmx 47 mmx 14 mm

62304-2RS-C3
20 mmx 47 mmx 14 mm

62204-2RS-C3
20 mmx 47 mmx 14 mm

63003-2RS-C3
20 mmx 47 mmx 14 mm

62303-2RS-C3
20 mmx 47 mmx 14 mm

63002-2RS-C3
20 mmx 47 mmx 14 mm

62302-2RS-C3
20 mmx 47 mmx 14 mm
