SKF 4205 ATN9 Deep groove ball bearings
Also known as : 4205 ATN9, 4205-B-TVH
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 18 mm
- Basic dynamic load rating: 19 kN
- Basic static load rating: 14.6 kN
SKF 4205 ATN9

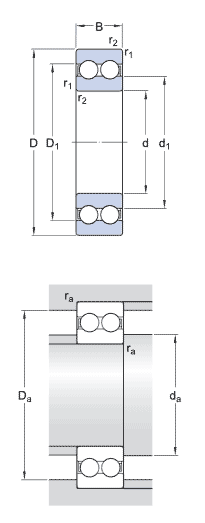

SKF 4205 ATN9 details
| model | 4205 ATN9 |
|---|---|
| d | 25 mm |
| D | 52 mm |
| B | 18 mm |
| d1 | 34.2 mm |
| D1 | 42.8 mm |
| r1,2 min. | 1 mm |
| da min | 30.6 mm |
| Da max | 46.4 mm |
| ra max | 1 mm |
| C | 19 kN, Basic dynamic load rating |
| C0 | 14.6 kN, Basic static load rating |
| Pu | 0.62 kN, Fatigue load limit |
| Reference speed | 20000 r/min |
| Limiting speed | 11000 r/min |
| kr | 0.05, Calculation factor |
| f0 | 14.3, Calculation factor |
| Mass | 0.17 kg |
