SKF 6201-2Z Deep groove ball bearings
Also known as : 6201-2Z, 6201ZZ
- Inside Diameter: 12 mm
- Outside Diameter: 32 mm
- Width: 10 mm
- Basic dynamic load rating: 7.2 kN
- Basic static load rating: 3.1 kN
SKF 6201-2Z

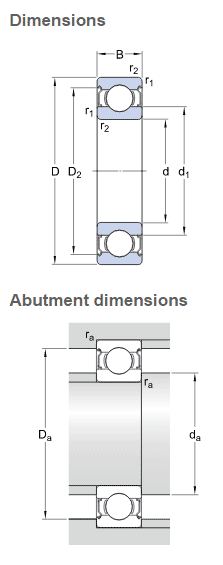

SKF 6201-2Z details
| model | 6201-2Z |
|---|---|
| d | 12 mm |
| D | 32 mm |
| B | 10 mm |
| d1 | 18.4 mm |
| D2 | 27.3 mm |
| r1,2 min. | mm |
| da min | 16.2 mm |
| da max | 18.4 mm |
| Da max | 27.8 mm |
| ra max | 0.6 mm |
| C | 7.2 kN, Basic dynamic load rating |
| C0 | 3.1 kN, Basic static load rating |
| Pu | 0.13 kN, Fatigue load limit |
| Reference speed | 50000 r/min |
| Limiting speed | 26000 r/min |
| kr | 0.025, Calculation factor |
| f0 | 12, Calculation factor |
| Mass | 0.0388 kg |
SKF 6201-2Z bearing cross reference
302K
12 mmx 32 mmx 10 mm
301K
12 mmx 32 mmx 10 mm
62207-2RS-C3
12 mmx 32 mmx 10 mm
62306-2RS-C3
12 mmx 32 mmx 10 mm
63005-2RS-C3
12 mmx 32 mmx 10 mm
62205-2RS-C3
12 mmx 32 mmx 10 mm
62304-2RS-C3
12 mmx 32 mmx 10 mm
62204-2RS-C3
12 mmx 32 mmx 10 mm
63003-2RS-C3
12 mmx 32 mmx 10 mm
62303-2RS-C3
12 mmx 32 mmx 10 mm
63002-2RS-C3
12 mmx 32 mmx 10 mm
