SKF 6209-2RS1 Deep groove ball bearings
Also known as : 6209-2RS1, 6209DDU
- Inside Diameter: 45 mm
- Outside Diameter: 85 mm
- Width: 19 mm
- Basic dynamic load rating: 35.1 kN
- Basic static load rating: 21.6 kN
SKF 6209-2RS1

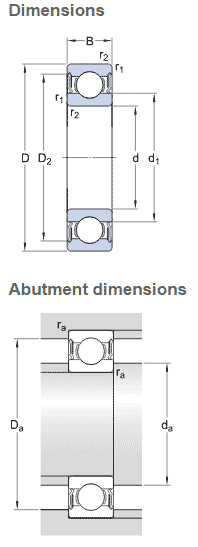

SKF 6209-2RS1 details
| model | 6209-2RS1 |
|---|---|
| d | 45 mm |
| D | 85 mm |
| B | 19 mm |
| d1 | 57.6 mm |
| D2 | 75.19 mm |
| r1,2 min. | 1.1 mm |
| da min | 52 mm |
| da max | 57.5 mm |
| Da max | 78 mm |
| ra max | 1 mm |
| C | 35.1 kN, Basic dynamic load rating |
| C0 | 21.6 kN, Basic static load rating |
| Pu | 0.915 kN, Fatigue load limit |
| Limiting speed | 5000 r/min |
| kr | 0.025, Calculation factor |
| f0 | 14.2, Calculation factor |
| Mass | 0.425 kg |
SKF 6209-2RS1 bearing cross reference
302K
45 mmx 85 mmx 19 mm
301K
45 mmx 85 mmx 19 mm
62207-2RS-C3
45 mmx 85 mmx 19 mm
62306-2RS-C3
45 mmx 85 mmx 19 mm
63005-2RS-C3
45 mmx 85 mmx 19 mm
62205-2RS-C3
45 mmx 85 mmx 19 mm
62304-2RS-C3
45 mmx 85 mmx 19 mm
62204-2RS-C3
45 mmx 85 mmx 19 mm
63003-2RS-C3
45 mmx 85 mmx 19 mm
62303-2RS-C3
45 mmx 85 mmx 19 mm
63002-2RS-C3
45 mmx 85 mmx 19 mm
