NTN EC-6005LLB Deep groove ball bearings
Also known as : EC-6005LLB
- Inside Diameter: 25 mm
- Outside Diameter: 47 mm
- Width: 12 mm
- Basic dynamic load rating: 10.1 kN
- Basic static load rating: 5.85 kN
NTN EC-6005LLB
NTN EC-6005LLB details
| Part Number | EC-6005LLB |
|---|---|
| Brand | NTN |
| Type | Expansion compensationg bearings |
| Mass | 0.075 kg |

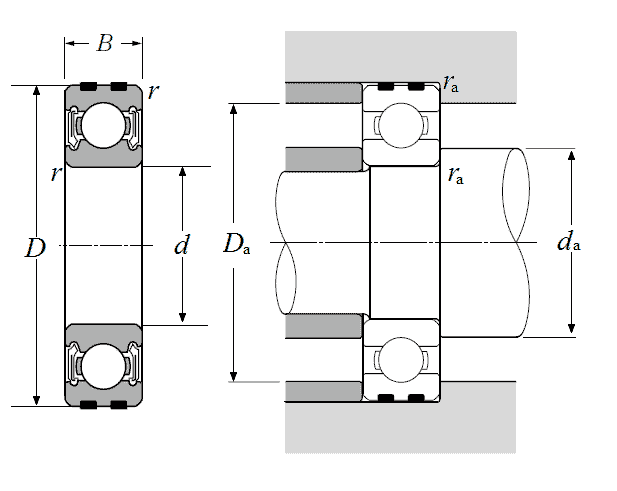

| Boundary dimensions (mm) | |
| Inner dia. (d) | 25 |
| Outer dia. (D) | 47 |
| Width (B) | 12 |
| Chamfer (rs_min) | 0.6 |
| Basic load ratings (kN) | |
| Dynamic (Cr) | 10.1 |
| Static (Cor) | 5.85 |
| Basic load ratings (kgf) | |
| Dynamic (Cr) | 1030 |
| Static (Cor) | 595 |
| Limiting speed (min-1) | |
| Grease | 15000 |
| Oil | 18000 |
XinYouYa have NTN EC-6005LLB bearings in stock. The boundary dimensions of expansion compensating deep groove ball bearings are the same as for standard bearings, but formed high polymer material with a high expansion rate is provided in the grooves on the outer circumference of the outer ring.
