TIMKEN 62306-2RS Deep groove ball bearings
Also known as : 62306-2RS
- Inside Diameter: 30 mm
- Outside Diameter: 72 mm
- Width: 27 mm
- Basic dynamic load rating: 28.1 kN
- Basic static load rating: 16 kN
TIMKEN 62306-2RS

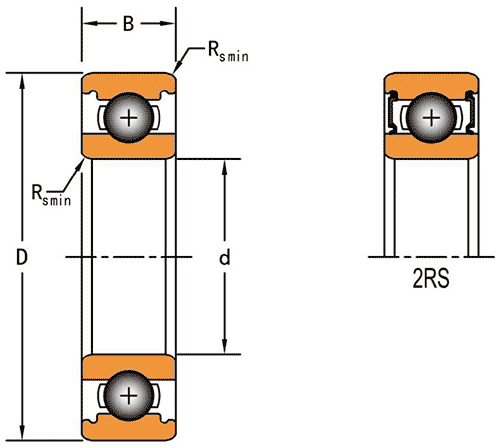

TIMKEN 62306-2RS details
| Bearing Number | 62306-2RS |
|---|---|
| Brand | TIMKEN |
| Type | Deep groove ball bearings |
| Clearance | C0 (Normal) |
| Bore Size d | 30.000 mm |
| Features | Contact Seals |
| Weight | 0.470 Kg |
| Grease Reference Speed | 13000 rpm |
| Outside Diameter D | 72.000 mm |
| Outside Ring Width B | 27.000 mm |
| Radius Rs min | 1.100 mm |
| Cr - Dynamic Load Rating | 28.1 kN |
| C0r - Static Load Rating | 16 kN |
| Grease Limiting Speed | 13000 rpm |
TIMKEN 62306-2RS bearing cross reference
302K
30 mmx 72 mmx 27 mm
301K
30 mmx 72 mmx 27 mm
62207-2RS-C3
30 mmx 72 mmx 27 mm
62306-2RS-C3
30 mmx 72 mmx 27 mm
63005-2RS-C3
30 mmx 72 mmx 27 mm
62205-2RS-C3
30 mmx 72 mmx 27 mm
62304-2RS-C3
30 mmx 72 mmx 27 mm
62204-2RS-C3
30 mmx 72 mmx 27 mm
63003-2RS-C3
30 mmx 72 mmx 27 mm
62303-2RS-C3
30 mmx 72 mmx 27 mm
63002-2RS-C3
30 mmx 72 mmx 27 mm
