TIMKEN 16002-ZZ Deep groove ball bearings
Also known as : 16002-ZZ
- Inside Diameter: 15 mm
- Outside Diameter: 32 mm
- Width: 8 mm
- Basic dynamic load rating: 5.6 kN
- Basic static load rating: 2.8 kN
TIMKEN 16002-ZZ
TIMKEN 16002-ZZ details

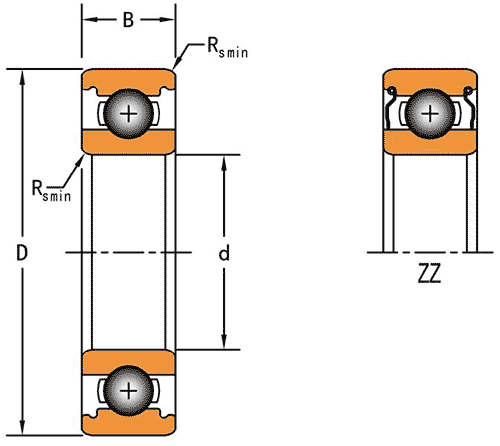

| Bearing Number | 16002-ZZ |
|---|---|
| Brand | TIMKEN |
| Type | Deep groove ball bearings |
| Clearance | C0 (Normal) |
| Bore Size d | 15.000 mm |
| Features | Shields |
| Weight | 0.0270 Kg |
| Outside Diameter D | 32.000 mm |
| Outside Ring Width B | 8.000 mm |
| Radius Rs min | 0.300 mm |
| Cr - Dynamic Load Rating | 5.6 kN |
| C0r - Static Load Rating | 2.8 kN |
| Grease Limiting Speed | 19000 rpm |
| Oil Limiting Speed | 27000 rpm |
TIMKEN 16002-ZZ bearing cross reference
302K
15 mmx 32 mmx 8 mm
301K
15 mmx 32 mmx 8 mm
62207-2RS-C3
15 mmx 32 mmx 8 mm
62306-2RS-C3
15 mmx 32 mmx 8 mm
63005-2RS-C3
15 mmx 32 mmx 8 mm
62205-2RS-C3
15 mmx 32 mmx 8 mm
62304-2RS-C3
15 mmx 32 mmx 8 mm
62204-2RS-C3
15 mmx 32 mmx 8 mm
63003-2RS-C3
15 mmx 32 mmx 8 mm
62303-2RS-C3
15 mmx 32 mmx 8 mm
63002-2RS-C3
15 mmx 32 mmx 8 mm
