NTN AC-6306LLU Deep groove ball bearings
Also known as : AC-6306LLU
- Inside Diameter: 30 mm
- Outside Diameter: 72 mm
- Width: 19 mm
- Basic dynamic load rating: 26.7 kN
- Basic static load rating: 15 kN
NTN AC-6306LLU
NTN AC-6306LLU details
| Part Number | AC-6306LLU |
|---|---|
| Brand | NTN |
| Mass | 0.334 kg |

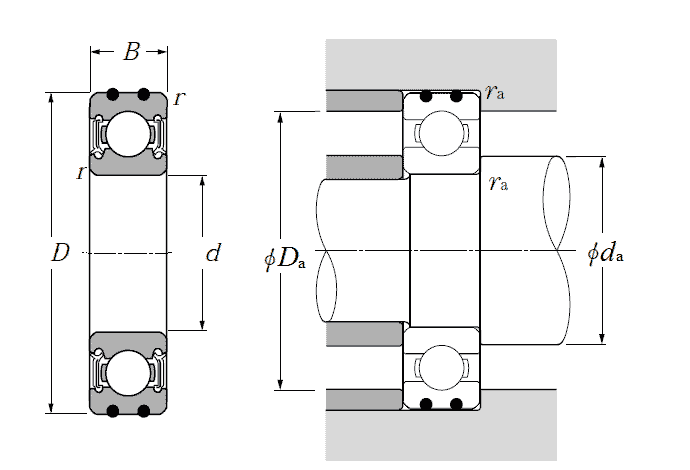

| Boundary dimensions (mm) | |
| Inner dia. (d) | 30 |
| Outer dia. (D) | 72 |
| Width (B) | 19 |
| Chamfer (rs_min) | 1.1 |
| Basic load ratings (kN) | |
| Dynamic (Cr) | 26.7 |
| Static (Cor) | 15 |
| Basic load ratings (kgf) | |
| Dynamic (Cr) | 2720 |
| Static (Cor) | 1530 |
| Limiting speed (min-1) | |
| Grease | 6600 |
| Abutment and fillet dimensions (mm) | |
| da min | 36.5 |
| da max | 43 |
| Da max | 65.5 |
| ras max | 1 |
XinYouYa have NTN AC-6306LLU bearings in stock. AC bearings, have the same boundary dimensions as standard bearings with the addition of two O-rings imbedded on the outside surface of the outer ring.
