NSK 63/22DDU Deep groove ball bearings
Also known as : 63/22DDU, 63/22-2RS1, 63/22-2RSR, 63/22LLU
- Inside Diameter: 22 mm
- Outside Diameter: 56 mm
- Width: 16 mm
- Basic dynamic load rating: 18.4 kN
- Basic static load rating: 9.25 kN

NSK 63/22DDU

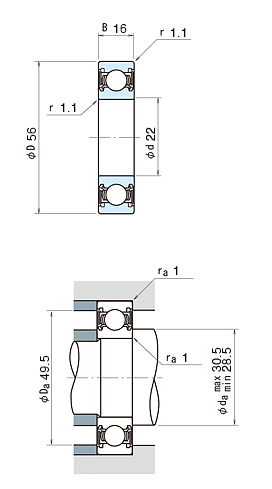

NSK 63/22DDU details
model | 63/22DDU |
---|---|
d | 22 mm |
D | 56 mm |
B | 16 mm |
rmin. | 1.1 mm |
Cr | 18400 N |
C0r | 9250 N |
Limiting speeds | 9500 min-1 (Grease) |
Mass | 0.179 kg (approx.) |

NSK 63/22DDU bearing cross reference

302K
22 mmx 56 mmx 16 mm

301K
22 mmx 56 mmx 16 mm

62207-2RS-C3
22 mmx 56 mmx 16 mm

62306-2RS-C3
22 mmx 56 mmx 16 mm

63005-2RS-C3
22 mmx 56 mmx 16 mm

62205-2RS-C3
22 mmx 56 mmx 16 mm

62304-2RS-C3
22 mmx 56 mmx 16 mm

62204-2RS-C3
22 mmx 56 mmx 16 mm

63003-2RS-C3
22 mmx 56 mmx 16 mm

62303-2RS-C3
22 mmx 56 mmx 16 mm

63002-2RS-C3
22 mmx 56 mmx 16 mm
