NSK 6003DDU Deep groove ball bearings
Also known as : 6003DDU, 6003-2RS, 6003LLU
- Inside Diameter: 17 mm
- Outside Diameter: 35 mm
- Width: 10 mm
- Basic dynamic load rating: 6 kN
- Basic static load rating: 3.25 kN
NSK 6003DDU

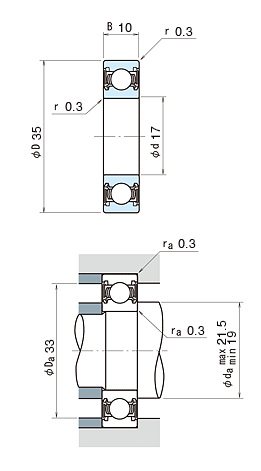

NSK 6003DDU details
| model | 6003DDU |
|---|---|
| d | 17 mm |
| D | 35 mm |
| B | 10 mm |
| rmin. | 0.3 mm |
| Cr | 6000 N |
| C0r | 3250 N |
| Limiting speeds | 13000 min-1 (Grease) |
| Mass | 0.041 kg (approx.) |
NSK 6003DDU bearing cross reference
302K
17 mmx 35 mmx 10 mm
301K
17 mmx 35 mmx 10 mm
62207-2RS-C3
17 mmx 35 mmx 10 mm
62306-2RS-C3
17 mmx 35 mmx 10 mm
63005-2RS-C3
17 mmx 35 mmx 10 mm
62205-2RS-C3
17 mmx 35 mmx 10 mm
62304-2RS-C3
17 mmx 35 mmx 10 mm
62204-2RS-C3
17 mmx 35 mmx 10 mm
63003-2RS-C3
17 mmx 35 mmx 10 mm
62303-2RS-C3
17 mmx 35 mmx 10 mm
63002-2RS-C3
17 mmx 35 mmx 10 mm
