NSK 6004ZZ Deep groove ball bearings
Also known as : 6004ZZ, 6004-2Z, 6004Z
- Inside Diameter: 20 mm
- Outside Diameter: 42 mm
- Width: 12 mm
- Basic dynamic load rating: 9.4 kN
- Basic static load rating: 5 kN
NSK 6004ZZ

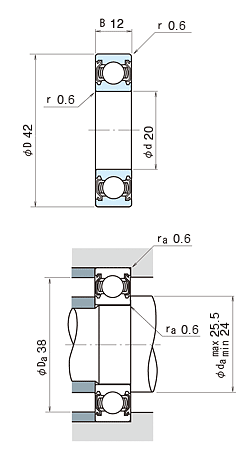

NSK 6004ZZ details
| model | 6004ZZ |
|---|---|
| d | 20 mm |
| D | 42 mm |
| B | 12 mm |
| rmin. | 0.6 mm |
| Cr | 9400 N |
| C0r | 5000 N |
| Limiting speeds | 18000 min-1 (Grease) |
| Mass | 0.068 kg (approx.) |
NSK 6004ZZ bearing cross reference
302K
20 mmx 42 mmx 12 mm
301K
20 mmx 42 mmx 12 mm
62207-2RS-C3
20 mmx 42 mmx 12 mm
62306-2RS-C3
20 mmx 42 mmx 12 mm
63005-2RS-C3
20 mmx 42 mmx 12 mm
62205-2RS-C3
20 mmx 42 mmx 12 mm
62304-2RS-C3
20 mmx 42 mmx 12 mm
62204-2RS-C3
20 mmx 42 mmx 12 mm
63003-2RS-C3
20 mmx 42 mmx 12 mm
62303-2RS-C3
20 mmx 42 mmx 12 mm
63002-2RS-C3
20 mmx 42 mmx 12 mm
