NSK 6206DDUC3 Deep groove ball bearings
Also known as : 6206DDUC3, 6206LLUC3, 6206-2RS1C3
- Inside Diameter: 30 mm
- Outside Diameter: 62 mm
- Width: 16 mm
- Basic dynamic load rating: 19.5 kN
- Basic static load rating: 11.3 kN
NSK 6206DDUC3

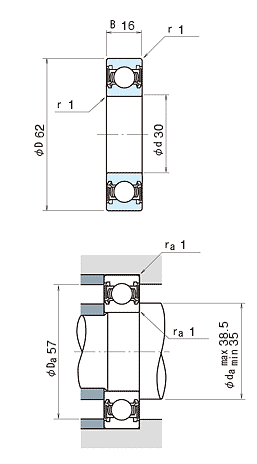

NSK 6206DDUC3 details
| model | 6206DDUC3 |
|---|---|
| d | 30 mm |
| D | 62 mm |
| B | 16 mm |
| rmin. | 1 mm |
| Cr | 19500 N |
| C0r | 11300 N |
| Limiting speeds | 7500 min-1 (Grease) |
| Mass | 0.199 kg (approx.) |
NSK 6206DDUC3 bearing cross reference
302K
30 mmx 62 mmx 16 mm
301K
30 mmx 62 mmx 16 mm
62207-2RS-C3
30 mmx 62 mmx 16 mm
62306-2RS-C3
30 mmx 62 mmx 16 mm
63005-2RS-C3
30 mmx 62 mmx 16 mm
62205-2RS-C3
30 mmx 62 mmx 16 mm
62304-2RS-C3
30 mmx 62 mmx 16 mm
62204-2RS-C3
30 mmx 62 mmx 16 mm
63003-2RS-C3
30 mmx 62 mmx 16 mm
62303-2RS-C3
30 mmx 62 mmx 16 mm
63002-2RS-C3
30 mmx 62 mmx 16 mm
