NSK 6000DDU Deep groove ball bearings
Also known as : 6000DDU, 6000-2RS1
- Inside Diameter: 10 mm
- Outside Diameter: 26 mm
- Width: 8 mm
- Basic dynamic load rating: 4.55 kN
- Basic static load rating: 1.97 kN
NSK 6000DDU

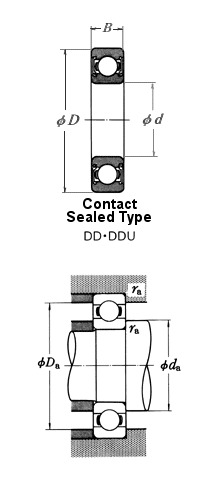

NSK 6000DDU details
| model | 6000DDU |
|---|---|
| d | 10 mm |
| D | 26 mm |
| B | 8 mm |
| rmin. | 0.3 mm |
| Cr |
4550 N 465 kgf |
| C0r |
1970 N 201 kgf |
| Limiting speeds | 22000 min-1 (Grease) |
| f0 | 12.4 (Factor) |
| da min | 12 mm |
| da max | 13 mm |
| Da | 24 mm |
| ra | 0.3 mm |
| Mass | 0.018 kg (approx.) |
NSK 6000DDU bearing cross reference
302K
10 mmx 26 mmx 8 mm
301K
10 mmx 26 mmx 8 mm
62207-2RS-C3
10 mmx 26 mmx 8 mm
62306-2RS-C3
10 mmx 26 mmx 8 mm
63005-2RS-C3
10 mmx 26 mmx 8 mm
62205-2RS-C3
10 mmx 26 mmx 8 mm
62304-2RS-C3
10 mmx 26 mmx 8 mm
62204-2RS-C3
10 mmx 26 mmx 8 mm
63003-2RS-C3
10 mmx 26 mmx 8 mm
62303-2RS-C3
10 mmx 26 mmx 8 mm
63002-2RS-C3
10 mmx 26 mmx 8 mm
