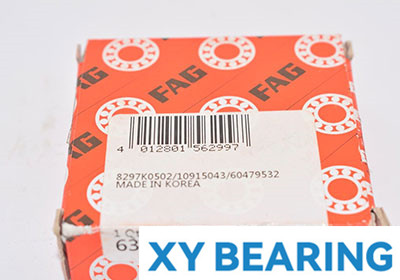

FAG 6304-2RSR-C3

FAG 6304-2RSR-C3 Deep groove ball bearings

Also known as : 6304-2RSR-C3

Inside Diameter: 20 mm
Outside Diameter: 52 mm
Width: 15 mm
Basic dynamic load rating: 16.9 kN
Basic static load rating: 7.9 kN

FAG 6304-2RSR-C3

FAG 6304-2RSR-C3 details

d	20 mm
D	52 mm
B	15 mm
D₂	44,4 mm
D_{a max}	45 mm
d₁	30,3 mm
d_{a min}	27 mm
r_{a max}	1 mm
r_min	1,1 mm
m	0,155 kg	Mass
C_r	16900 N	Basic dynamic load rating, radial
C_0r	7900 N	Basic static load rating, radial
C_ur	530 N	Fatigue limit load, radial
n_G	8800 1/min	Limiting speed
f₀	12,4	Calculation factor

FAG 6304-2RSR-C3 bearing cross reference

302K
20 mmx 52 mmx 15 mm

301K
20 mmx 52 mmx 15 mm

62207-2RS-C3
20 mmx 52 mmx 15 mm

62306-2RS-C3
20 mmx 52 mmx 15 mm

63005-2RS-C3
20 mmx 52 mmx 15 mm

62205-2RS-C3
20 mmx 52 mmx 15 mm

62304-2RS-C3
20 mmx 52 mmx 15 mm

62204-2RS-C3
20 mmx 52 mmx 15 mm

63003-2RS-C3
20 mmx 52 mmx 15 mm

62303-2RS-C3
20 mmx 52 mmx 15 mm

63002-2RS-C3
20 mmx 52 mmx 15 mm

62302-2RS-C3
20 mmx 52 mmx 15 mm
