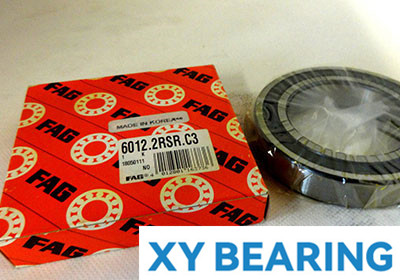

FAG 6012-2RSR-C3

FAG 6012-2RSR-C3 Deep groove ball bearings

Also known as : 6012-2RSR-C3

Inside Diameter: 60 mm
Outside Diameter: 95 mm
Width: 18 mm
Basic dynamic load rating: 31.5 kN
Basic static load rating: 23.2 kN

FAG 6012-2RSR-C3

FAG 6012-2RSR-C3 details

d	60 mm
D	95 mm
B	18 mm
D₂	86 mm
D_{a max}	89 mm
d₁	71,3 mm
d_{a min}	66 mm
r_{a max}	1 mm
r_min	1,1 mm
m	0,432 kg	Mass
C_r	31500 N	Basic dynamic load rating, radial
C_0r	23200 N	Basic static load rating, radial
C_ur	1190 N	Fatigue limit load, radial
n_G	3750 1/min	Limiting speed
f₀	15,6	Calculation factor

FAG 6012-2RSR-C3 bearing cross reference

302K
60 mmx 95 mmx 18 mm

301K
60 mmx 95 mmx 18 mm

62207-2RS-C3
60 mmx 95 mmx 18 mm

62306-2RS-C3
60 mmx 95 mmx 18 mm

63005-2RS-C3
60 mmx 95 mmx 18 mm

62205-2RS-C3
60 mmx 95 mmx 18 mm

62304-2RS-C3
60 mmx 95 mmx 18 mm

62204-2RS-C3
60 mmx 95 mmx 18 mm

63003-2RS-C3
60 mmx 95 mmx 18 mm

62303-2RS-C3
60 mmx 95 mmx 18 mm

63002-2RS-C3
60 mmx 95 mmx 18 mm

62302-2RS-C3
60 mmx 95 mmx 18 mm
