TIMKEN 6008-N Deep groove ball bearings
Also known as : 6008-N
- Inside Diameter: 40 mm
- Outside Diameter: 68 mm
- Width: 15 mm
- Basic dynamic load rating: 16.8 kN
- Basic static load rating: 11.5 kN
TIMKEN 6008-N

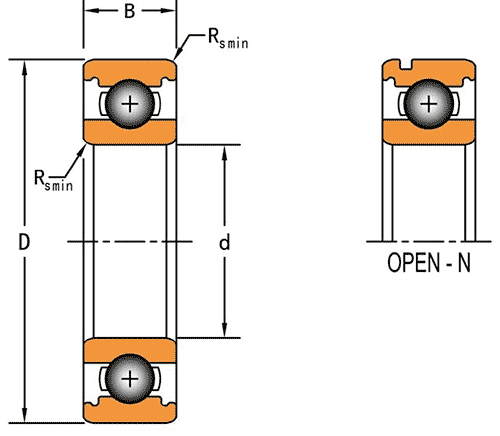

TIMKEN 6008-N details
| Bearing Number | 6008-N |
|---|---|
| Brand | TIMKEN |
| Type | Deep groove ball bearings |
| Clearance | C0 (Normal) |
| Bore Size d | 40.000 mm |
| Features | O.D. Groove |
| Weight | 0.190 Kg |
| Outside Diameter D | 68.000 mm |
| Outside Ring Width B | 15.000 mm |
| Radius Rs min | 1.000 mm |
| Cr - Dynamic Load Rating | 16.8 kN |
| C0r - Static Load Rating | 11.5 kN |
| Grease Reference Speed | 10000 rpm |
| Oil Reference Speed | 15000 rpm |
TIMKEN 6008-N bearing cross reference
302K
40 mmx 68 mmx 15 mm
301K
40 mmx 68 mmx 15 mm
62207-2RS-C3
40 mmx 68 mmx 15 mm
62306-2RS-C3
40 mmx 68 mmx 15 mm
63005-2RS-C3
40 mmx 68 mmx 15 mm
62205-2RS-C3
40 mmx 68 mmx 15 mm
62304-2RS-C3
40 mmx 68 mmx 15 mm
62204-2RS-C3
40 mmx 68 mmx 15 mm
63003-2RS-C3
40 mmx 68 mmx 15 mm
62303-2RS-C3
40 mmx 68 mmx 15 mm
63002-2RS-C3
40 mmx 68 mmx 15 mm
