NTN 6216LLBC3 Deep groove ball bearings
Also known as : 6216-2RS1/C3
- Inside Diameter: 80 mm
- Outside Diameter: 140 mm
- Width: 26 mm
- Basic dynamic load rating: 72.5 kN
- Basic static load rating: 53 kN
NTN 6216LLBC3
NTN 6216LLBC3 details
| Part Number | 6216LLBC3 |
|---|---|
| Brand | NTN |
| Mass | 1.4 kg |

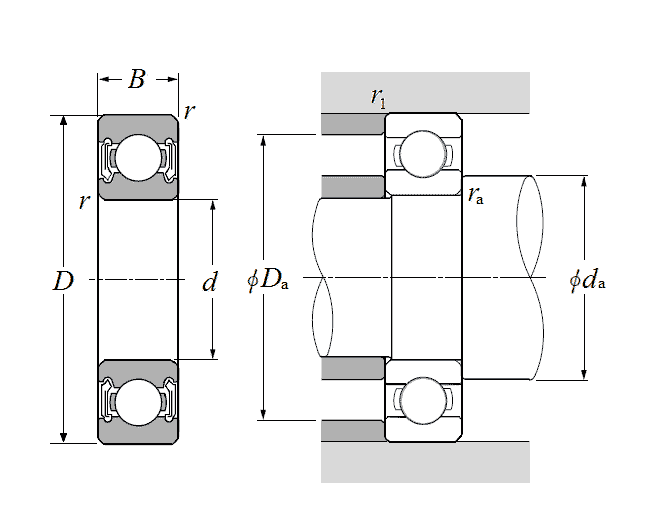

| Boundary dimensions (mm) | |
| Inner dia. (d) | 80 |
| Outer dia. (D) | 140 |
| Width (B) | 26 |
| Chamfer (rs_min) | 2 |
| Basic load ratings (kN) | |
| Dynamic (Cr) | 72.5 |
| Static (Cor) | 53 |
| Basic load ratings (kgf) | |
| Dynamic (Cr) | 7400 |
| Static (Cor) | 5400 |
| Limiting speed (min-1) | |
| Grease | 4500 |
| Oil | 5300 |
| Abutment and fillet dimensions (mm) | |
| da min | 89 |
| da max | 95.5 |
| Da max | 131 |
| ras max | 2 |
XinYouYa have NTN 6216LLBC3 bearings in stock.Deep groove ball bearings are the most widely used bearings.
NTN 6216LLBC3 bearing cross reference
302K
80 mmx 140 mmx 26 mm
301K
80 mmx 140 mmx 26 mm
62207-2RS-C3
80 mmx 140 mmx 26 mm
62306-2RS-C3
80 mmx 140 mmx 26 mm
63005-2RS-C3
80 mmx 140 mmx 26 mm
62205-2RS-C3
80 mmx 140 mmx 26 mm
62304-2RS-C3
80 mmx 140 mmx 26 mm
62204-2RS-C3
80 mmx 140 mmx 26 mm
63003-2RS-C3
80 mmx 140 mmx 26 mm
62303-2RS-C3
80 mmx 140 mmx 26 mm
63002-2RS-C3
80 mmx 140 mmx 26 mm
