NSK 6022ZZ Deep groove ball bearings
Also known as : 6022ZZ, 6022-2Z
- Inside Diameter: 110 mm
- Outside Diameter: 170 mm
- Width: 28 mm
- Basic dynamic load rating: 85 kN
- Basic static load rating: 73 kN
NSK 6022ZZ

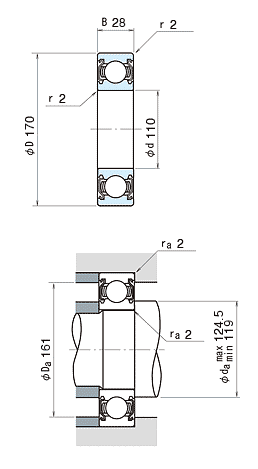

NSK 6022ZZ details
| model | 6022ZZ |
|---|---|
| d | 110 mm |
| D | 170 mm |
| B | 28 mm |
| rmin. | 2.0 mm |
| Cr |
85000 N 8650 kgf |
| C0r |
73000 N 7450 kgf |
| Limiting speeds | 3800 min-1 (Grease) |
| f0 | 15.5 (Factor) |
| da min | 119 mm |
| da max | 124.5 mm |
| Da | 161 mm |
| ra | 2 mm |
| Mass | 1.940 kg (approx.) |
NSK 6022ZZ bearing cross reference
302K
110 mmx 170 mmx 28 mm
301K
110 mmx 170 mmx 28 mm
62207-2RS-C3
110 mmx 170 mmx 28 mm
62306-2RS-C3
110 mmx 170 mmx 28 mm
63005-2RS-C3
110 mmx 170 mmx 28 mm
62205-2RS-C3
110 mmx 170 mmx 28 mm
62304-2RS-C3
110 mmx 170 mmx 28 mm
62204-2RS-C3
110 mmx 170 mmx 28 mm
63003-2RS-C3
110 mmx 170 mmx 28 mm
62303-2RS-C3
110 mmx 170 mmx 28 mm
63002-2RS-C3
110 mmx 170 mmx 28 mm
