NSK 6212ZZ Deep groove ball bearings
Also known as : 6212ZZ, 6212-2Z
- Inside Diameter: 60 mm
- Outside Diameter: 110 mm
- Width: 22 mm
- Basic dynamic load rating: 52.5 kN
- Basic static load rating: 36 kN
NSK 6212ZZ

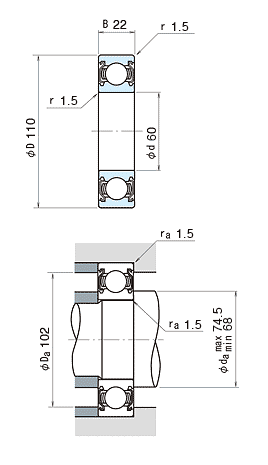

NSK 6212ZZ details
| model | 6212ZZ |
|---|---|
| d | 60 mm |
| D | 110 mm |
| B | 22 mm |
| rmin. | 1.5 mm |
| Cr |
52500 N 5350 kgf |
| C0r |
36000 N 3700 kgf |
| Limiting speeds | 5600 min-1 (Grease) |
| f0 | 14.3 (Factor) |
| da min | 68 mm |
| da max | 74.5 mm |
| Da | 102 mm |
| ra | 1.5 mm |
| Mass | 0.783 kg (approx.) |
NSK 6212ZZ bearing cross reference
302K
60 mmx 110 mmx 22 mm
301K
60 mmx 110 mmx 22 mm
62207-2RS-C3
60 mmx 110 mmx 22 mm
62306-2RS-C3
60 mmx 110 mmx 22 mm
63005-2RS-C3
60 mmx 110 mmx 22 mm
62205-2RS-C3
60 mmx 110 mmx 22 mm
62304-2RS-C3
60 mmx 110 mmx 22 mm
62204-2RS-C3
60 mmx 110 mmx 22 mm
63003-2RS-C3
60 mmx 110 mmx 22 mm
62303-2RS-C3
60 mmx 110 mmx 22 mm
63002-2RS-C3
60 mmx 110 mmx 22 mm
