NSK 6314ZZ Deep groove ball bearings
Also known as : 6314ZZ, 6314-2Z
- Inside Diameter: 70 mm
- Outside Diameter: 150 mm
- Width: 35 mm
- Basic dynamic load rating: 104 kN
- Basic static load rating: 68 kN
NSK 6314ZZ

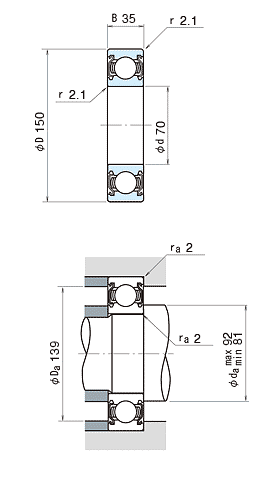

NSK 6314ZZ details
| model | 6314ZZ |
|---|---|
| d | 70 mm |
| D | 150 mm |
| B | 35 mm |
| rmin. | 2.1 mm |
| Cr |
104000 N 10600 kgf |
| C0r |
68000 N 6950 kgf |
| Limiting speeds | 4500 min-1 (Grease) |
| f0 | 13.2 (Factor) |
| da min | 81 mm |
| da max | 92 mm |
| Da | 139 mm |
| ra | 2 mm |
| Mass | 2.570 kg (approx.) |
NSK 6314ZZ bearing cross reference
302K
70 mmx 150 mmx 35 mm
301K
70 mmx 150 mmx 35 mm
62207-2RS-C3
70 mmx 150 mmx 35 mm
62306-2RS-C3
70 mmx 150 mmx 35 mm
63005-2RS-C3
70 mmx 150 mmx 35 mm
62205-2RS-C3
70 mmx 150 mmx 35 mm
62304-2RS-C3
70 mmx 150 mmx 35 mm
62204-2RS-C3
70 mmx 150 mmx 35 mm
63003-2RS-C3
70 mmx 150 mmx 35 mm
62303-2RS-C3
70 mmx 150 mmx 35 mm
63002-2RS-C3
70 mmx 150 mmx 35 mm
