NSK 6805ZZ Deep groove ball bearings
Also known as : 6805ZZ, 61805-2Z
- Inside Diameter: 25 mm
- Outside Diameter: 37 mm
- Width: 7 mm
- Basic dynamic load rating: 4.5 kN
- Basic static load rating: 3.15 kN
NSK 6805ZZ

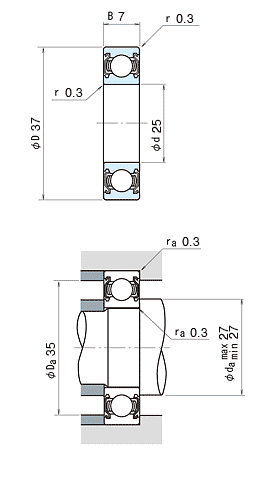

NSK 6805ZZ details
| model | 6805ZZ |
|---|---|
| d | 25 mm |
| D | 37 mm |
| B | 7 mm |
| rmin. | 0.3 mm |
| Cr |
4500 N 455 kgf |
| C0r |
3150 N 320 kgf |
| Limiting speeds | 18000 min-1 (Grease) |
| f0 | 16.1 (Factor) |
| da min | 27 mm |
| da max | 27 mm |
| Da | 35 mm |
| ra | 0.3 mm |
| Mass | 0.021 kg (approx.) |
NSK 6805ZZ bearing cross reference
302K
25 mmx 37 mmx 7 mm
301K
25 mmx 37 mmx 7 mm
62207-2RS-C3
25 mmx 37 mmx 7 mm
62306-2RS-C3
25 mmx 37 mmx 7 mm
63005-2RS-C3
25 mmx 37 mmx 7 mm
62205-2RS-C3
25 mmx 37 mmx 7 mm
62304-2RS-C3
25 mmx 37 mmx 7 mm
62204-2RS-C3
25 mmx 37 mmx 7 mm
63003-2RS-C3
25 mmx 37 mmx 7 mm
62303-2RS-C3
25 mmx 37 mmx 7 mm
63002-2RS-C3
25 mmx 37 mmx 7 mm
