NSK 6824ZZ Deep groove ball bearings
Also known as : 6824ZZ, 61824-2Z
- Inside Diameter: 120 mm
- Outside Diameter: 150 mm
- Width: 16 mm
- Basic dynamic load rating: 28.9 kN
- Basic static load rating: 35.5 kN
NSK 6824ZZ

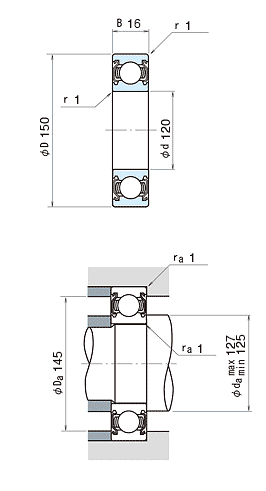

NSK 6824ZZ details
| model | 6824ZZ |
|---|---|
| d | 120 mm |
| D | 150 mm |
| B | 16 mm |
| rmin. | 1.0 mm |
| Cr |
28900 N 2950 kgf |
| C0r |
35500 N 3650 kgf |
| Limiting speeds | 4000 min-1 (Grease) |
| f0 | 17.3 (Factor) |
| da min | 125 mm |
| da max | 127 mm |
| Da | 145 mm |
| ra | 1 mm |
| Mass | 0.537 kg (approx.) |
