NSK 6901ZZ Deep groove ball bearings
Also known as : 6901ZZ, 61901-2Z
- Inside Diameter: 12 mm
- Outside Diameter: 24 mm
- Width: 6 mm
- Basic dynamic load rating: 2.89 kN
- Basic static load rating: 1.46 kN
NSK 6901ZZ

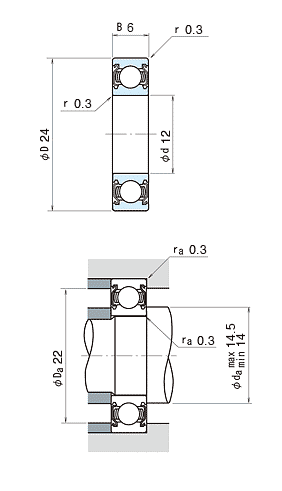

NSK 6901ZZ details
| model | 6901ZZ |
|---|---|
| d | 12 mm |
| D | 24 mm |
| B | 6 mm |
| rmin. | 0.3 mm |
| Cr |
2890 N 295 kgf |
| C0r |
1460 N 149 kgf |
| Limiting speeds | 30000 min-1 (Grease) |
| f0 | 14.5 (Factor) |
| da min | 14 mm |
| da max | 14.5 mm |
| Da | 22 mm |
| ra | 0.3 mm |
| Mass | 0.010 kg (approx.) |
NSK 6901ZZ bearing cross reference
302K
12 mmx 24 mmx 6 mm
301K
12 mmx 24 mmx 6 mm
62207-2RS-C3
12 mmx 24 mmx 6 mm
62306-2RS-C3
12 mmx 24 mmx 6 mm
63005-2RS-C3
12 mmx 24 mmx 6 mm
62205-2RS-C3
12 mmx 24 mmx 6 mm
62304-2RS-C3
12 mmx 24 mmx 6 mm
62204-2RS-C3
12 mmx 24 mmx 6 mm
63003-2RS-C3
12 mmx 24 mmx 6 mm
62303-2RS-C3
12 mmx 24 mmx 6 mm
63002-2RS-C3
12 mmx 24 mmx 6 mm
