NSK 6905ZZ Deep groove ball bearings
Also known as : 6905ZZ, 61905-2Z
- Inside Diameter: 25 mm
- Outside Diameter: 42 mm
- Width: 9 mm
- Basic dynamic load rating: 7.05 kN
- Basic static load rating: 4.55 kN
NSK 6905ZZ

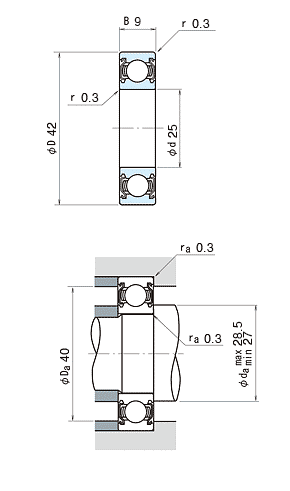

NSK 6905ZZ details
| model | 6905ZZ |
|---|---|
| d | 25 mm |
| D | 42 mm |
| B | 9 mm |
| rmin. | 0.3 mm |
| Cr |
7050 N 715 kgf |
| C0r |
4550 N 460 kgf |
| Limiting speeds | 16000 min-1 (Grease) |
| f0 | 15.4 (Factor) |
| da min | 27 mm |
| da max | 28.5 mm |
| Da | 40 mm |
| ra | 0.3 mm |
| Mass | 0.042 kg (approx.) |
NSK 6905ZZ bearing cross reference
302K
25 mmx 42 mmx 9 mm
301K
25 mmx 42 mmx 9 mm
62207-2RS-C3
25 mmx 42 mmx 9 mm
62306-2RS-C3
25 mmx 42 mmx 9 mm
63005-2RS-C3
25 mmx 42 mmx 9 mm
62205-2RS-C3
25 mmx 42 mmx 9 mm
62304-2RS-C3
25 mmx 42 mmx 9 mm
62204-2RS-C3
25 mmx 42 mmx 9 mm
63003-2RS-C3
25 mmx 42 mmx 9 mm
62303-2RS-C3
25 mmx 42 mmx 9 mm
63002-2RS-C3
25 mmx 42 mmx 9 mm
