NSK 6916ZZ Deep groove ball bearings
Also known as : 6916ZZ, 61916-2Z
- Inside Diameter: 80 mm
- Outside Diameter: 110 mm
- Width: 16 mm
- Basic dynamic load rating: 25 kN
- Basic static load rating: 24 kN
NSK 6916ZZ

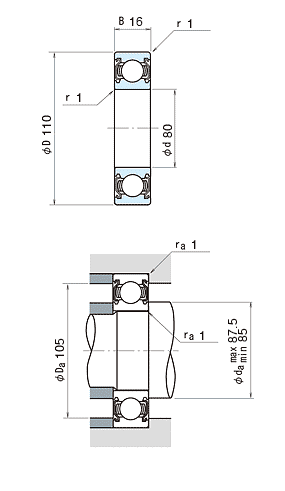

NSK 6916ZZ details
| model | 6916ZZ |
|---|---|
| d | 80 mm |
| D | 110 mm |
| B | 16 mm |
| rmin. | 1.0 mm |
| Cr |
25000 N 2540 kgf |
| C0r |
24000 N 2450 kgf |
| Limiting speeds | 5600 min-1 (Grease) |
| f0 | 16.6 (Factor) |
| da min | 85 mm |
| da max | 87.5 mm |
| Da | 105 mm |
| ra | 1 mm |
| Mass | 0.391 kg (approx.) |
NSK 6916ZZ bearing cross reference
302K
80 mmx 110 mmx 16 mm
301K
80 mmx 110 mmx 16 mm
62207-2RS-C3
80 mmx 110 mmx 16 mm
62306-2RS-C3
80 mmx 110 mmx 16 mm
63005-2RS-C3
80 mmx 110 mmx 16 mm
62205-2RS-C3
80 mmx 110 mmx 16 mm
62304-2RS-C3
80 mmx 110 mmx 16 mm
62204-2RS-C3
80 mmx 110 mmx 16 mm
63003-2RS-C3
80 mmx 110 mmx 16 mm
62303-2RS-C3
80 mmx 110 mmx 16 mm
63002-2RS-C3
80 mmx 110 mmx 16 mm
