NSK 6207DDU Deep groove ball bearings
Also known as : 6207DDU, 6207LLU, 6207-2RS1, 6207-2RSR
- Inside Diameter: 35 mm
- Outside Diameter: 72 mm
- Width: 17 mm
- Basic dynamic load rating: 25.7 kN
- Basic static load rating: 15.3 kN
NSK 6207DDU

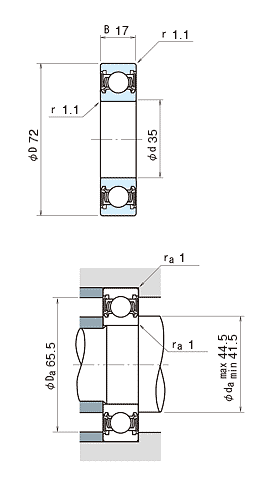

NSK 6207DDU details
| model | 6207DDU |
|---|---|
| d | 35 mm |
| D | 72 mm |
| B | 17 mm |
| rmin. | 1.1 mm |
| Cr |
25700 N 2620 kgf |
| C0r |
15300 N 1560 kgf |
| Limiting speeds | 6300 min-1 (Grease) |
| f0 | 13.8 (Factor) |
| da min | 41.5 mm |
| da max | 44.5 mm |
| Da | 65.5 mm |
| ra | 1 mm |
| Mass | 0.284 kg (approx.) |
