NSK 6208DDU Deep groove ball bearings
Also known as : 6208DDU, 6208LLU, 6208-2RS1, 6208-2RSR
- Inside Diameter: 40 mm
- Outside Diameter: 80 mm
- Width: 18 mm
- Basic dynamic load rating: 29.1 kN
- Basic static load rating: 17.9 kN
NSK 6208DDU

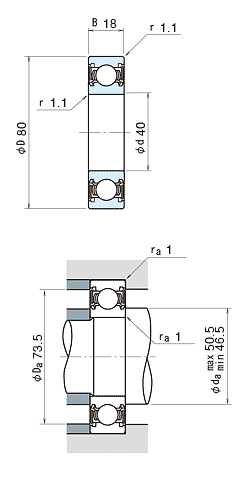

NSK 6208DDU details
| model | 6208DDU |
|---|---|
| d | 40 mm |
| D | 80 mm |
| B | 18 mm |
| rmin. | 1.1 mm |
| Cr |
29100 N 2970 kgf |
| C0r |
17900 N 1820 kgf |
| Limiting speeds | 5600 min-1 (Grease) |
| f0 | 14 (Factor) |
| da min | 46.5 mm |
| da max | 50.5 mm |
| Da | 73.5 mm |
| ra | 1 mm |
| Mass | 0.366 kg (approx.) |
NSK 6208DDU bearing cross reference
302K
40 mmx 80 mmx 18 mm
301K
40 mmx 80 mmx 18 mm
62207-2RS-C3
40 mmx 80 mmx 18 mm
62306-2RS-C3
40 mmx 80 mmx 18 mm
63005-2RS-C3
40 mmx 80 mmx 18 mm
62205-2RS-C3
40 mmx 80 mmx 18 mm
62304-2RS-C3
40 mmx 80 mmx 18 mm
62204-2RS-C3
40 mmx 80 mmx 18 mm
63003-2RS-C3
40 mmx 80 mmx 18 mm
62303-2RS-C3
40 mmx 80 mmx 18 mm
63002-2RS-C3
40 mmx 80 mmx 18 mm
