NSK 6211DDU Deep groove ball bearings
Also known as : 6211DDU, 6211LLU, 6211-2RS1, 6211-2RSR
- Inside Diameter: 55 mm
- Outside Diameter: 100 mm
- Width: 21 mm
- Basic dynamic load rating: 43.5 kN
- Basic static load rating: 29.3 kN
NSK 6211DDU

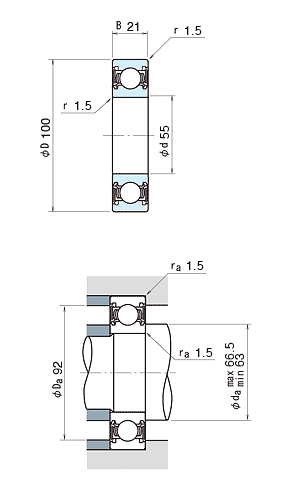

NSK 6211DDU details
| model | 6211DDU |
|---|---|
| d | 55 mm |
| D | 100 mm |
| B | 21 mm |
| rmin. | 1.5 mm |
| Cr |
43500 N 4450 kgf |
| C0r |
29300 N 2980 kgf |
| Limiting speeds | 4300 min-1 (Grease) |
| f0 | 14.3 (Factor) |
| da min | 63 mm |
| da max | 66.5 mm |
| Da | 92 mm |
| ra | 1.5 mm |
| Mass | 0.619 kg (approx.) |
NSK 6211DDU bearing cross reference
302K
55 mmx 100 mmx 21 mm
301K
55 mmx 100 mmx 21 mm
62207-2RS-C3
55 mmx 100 mmx 21 mm
62306-2RS-C3
55 mmx 100 mmx 21 mm
63005-2RS-C3
55 mmx 100 mmx 21 mm
62205-2RS-C3
55 mmx 100 mmx 21 mm
62304-2RS-C3
55 mmx 100 mmx 21 mm
62204-2RS-C3
55 mmx 100 mmx 21 mm
63003-2RS-C3
55 mmx 100 mmx 21 mm
62303-2RS-C3
55 mmx 100 mmx 21 mm
63002-2RS-C3
55 mmx 100 mmx 21 mm
