NSK 6303DDU Deep groove ball bearings
Also known as : 6303DDU, 6303LLU, 6303-2RS1, 6303-2RSR
- Inside Diameter: 17 mm
- Outside Diameter: 47 mm
- Width: 14 mm
- Basic dynamic load rating: 13.6 kN
- Basic static load rating: 6.65 kN
NSK 6303DDU

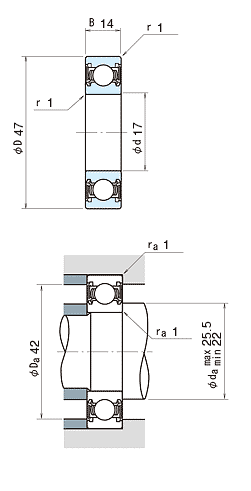

NSK 6303DDU details
| model | 6303DDU |
|---|---|
| d | 17 mm |
| D | 47 mm |
| B | 14 mm |
| rmin. | 1.0 mm |
| Cr |
13600 N 1390 kgf |
| C0r |
6650 N 675 kgf |
| Limiting speeds | 11000 min-1 (Grease) |
| f0 | 12.4 (Factor) |
| da min | 22 mm |
| da max | 25.5 mm |
| Da | 42 mm |
| ra | 1 mm |
| Mass | 0.113 kg (approx.) |
NSK 6303DDU bearing cross reference
302K
17 mmx 47 mmx 14 mm
301K
17 mmx 47 mmx 14 mm
62207-2RS-C3
17 mmx 47 mmx 14 mm
62306-2RS-C3
17 mmx 47 mmx 14 mm
63005-2RS-C3
17 mmx 47 mmx 14 mm
62205-2RS-C3
17 mmx 47 mmx 14 mm
62304-2RS-C3
17 mmx 47 mmx 14 mm
62204-2RS-C3
17 mmx 47 mmx 14 mm
63003-2RS-C3
17 mmx 47 mmx 14 mm
62303-2RS-C3
17 mmx 47 mmx 14 mm
63002-2RS-C3
17 mmx 47 mmx 14 mm
