NSK 6308DDU Deep groove ball bearings
Also known as : 6308DDU, 6308LLU, 6308-2RS1, 6308-2RSR
- Inside Diameter: 40 mm
- Outside Diameter: 90 mm
- Width: 23 mm
- Basic dynamic load rating: 40.5 kN
- Basic static load rating: 24 kN
NSK 6308DDU

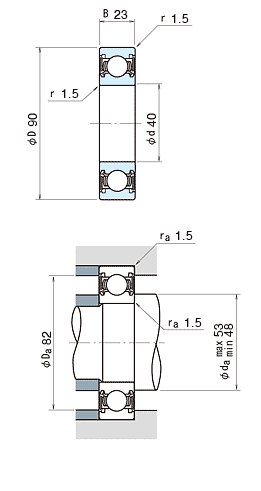

NSK 6308DDU details
| model | 6308DDU |
|---|---|
| d | 40 mm |
| D | 90 mm |
| B | 23 mm |
| rmin. | 1.5 mm |
| Cr |
40500 N 4150 kgf |
| C0r |
24000 N 2450 kgf |
| Limiting speeds | 5300 min-1 (Grease) |
| f0 | 13.2 (Factor) |
| da min | 48 mm |
| da max | 53 mm |
| Da | 82 mm |
| ra | 1.5 mm |
| Mass | 0.636 kg (approx.) |
NSK 6308DDU bearing cross reference
302K
40 mmx 90 mmx 23 mm
301K
40 mmx 90 mmx 23 mm
62207-2RS-C3
40 mmx 90 mmx 23 mm
62306-2RS-C3
40 mmx 90 mmx 23 mm
63005-2RS-C3
40 mmx 90 mmx 23 mm
62205-2RS-C3
40 mmx 90 mmx 23 mm
62304-2RS-C3
40 mmx 90 mmx 23 mm
62204-2RS-C3
40 mmx 90 mmx 23 mm
63003-2RS-C3
40 mmx 90 mmx 23 mm
62303-2RS-C3
40 mmx 90 mmx 23 mm
63002-2RS-C3
40 mmx 90 mmx 23 mm
