NSK 6220 Deep groove ball bearings
Also known as : 6220
- Inside Diameter: 100 mm
- Outside Diameter: 180 mm
- Width: 34 mm
- Basic dynamic load rating: 122 kN
- Basic static load rating: 93 kN
NSK 6220

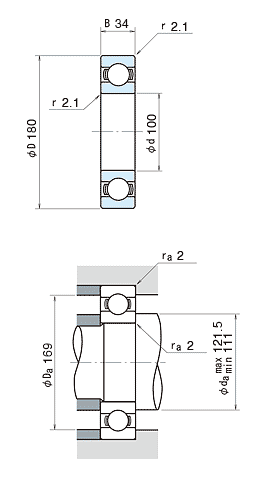

NSK 6220 details
| model | 6220 |
|---|---|
| d | 100 mm |
| D | 180 mm |
| B | 34 mm |
| rmin. | 2.1 mm |
| Cr |
122000 N 12500 kgf |
| C0r |
93000 N 9500 kgf |
| Limiting speeds | 3600 min-1 (Grease) |
| Limiting speeds | 4300 min-1 (Oil) |
| f0 | 14.4 (Factor) |
| da min | 111.0 mm |
| da max | 121.5 mm |
| Da | 169.0 mm |
| ra | 2.0 mm |
| Mass | 3.170 kg (approx.) |
NSK 6220 bearing cross reference
302K
100 mmx 180 mmx 34 mm
301K
100 mmx 180 mmx 34 mm
62207-2RS-C3
100 mmx 180 mmx 34 mm
62306-2RS-C3
100 mmx 180 mmx 34 mm
63005-2RS-C3
100 mmx 180 mmx 34 mm
62205-2RS-C3
100 mmx 180 mmx 34 mm
62304-2RS-C3
100 mmx 180 mmx 34 mm
62204-2RS-C3
100 mmx 180 mmx 34 mm
63003-2RS-C3
100 mmx 180 mmx 34 mm
62303-2RS-C3
100 mmx 180 mmx 34 mm
63002-2RS-C3
100 mmx 180 mmx 34 mm
