NSK 6319C3 Deep groove ball bearings
Also known as : 6319C3
- Inside Diameter: 95 mm
- Outside Diameter: 200 mm
- Width: 45 mm
- Basic dynamic load rating: 153 kN
- Basic static load rating: 119 kN
NSK 6319C3

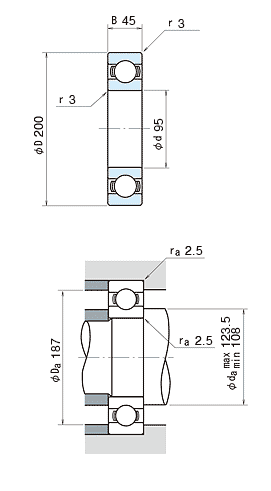

NSK 6319C3 details
| model | 6319C3 |
|---|---|
| d | 95 mm |
| D | 200 mm |
| B | 45 mm |
| rmin. | 3.0 mm |
| Cr |
153000 N 15600 kgf |
| C0r |
119000 N 12100 kgf |
| Limiting speeds | 3000 min-1 (Grease) |
| Limiting speeds | 3600 min-1 (Oil) |
| f0 | 13.3 (Factor) |
| da min | 108.0 mm |
| da max | 123.5 mm |
| Da | 187.0 mm |
| ra | 2.5 mm |
| Mass | 5.760 kg (approx.) |
