FAG 6205-C-2ZC3 Deep groove ball bearings
Also known as : 6205-C-2ZC3, 6205-2ZC3, 6205ZZC3
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 15 mm
- Basic dynamic load rating: 15 kN
- Basic static load rating: 7.8 kN
FAG 6205-C-2ZC3
FAG 6205-C-2ZC3 details

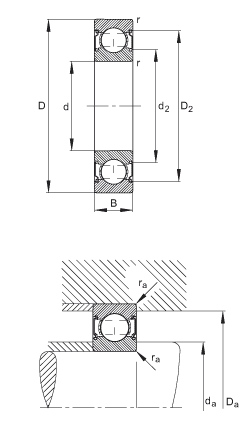

| model | 6205-C-2ZC3 |
|---|---|
| d | 25 mm |
| D | 52 mm |
| B | 15 mm |
| D2 | 46.4 mm |
| Da max | 46.4 mm |
| d2 | 31.4 mm |
| da min | 30.6 mm |
| ra max | 1 mm |
| rmin | 1 mm |
| Cr | 15000 N Basic dynamic load rating, radial |
| C0r | 7800 N Basic static load rating, radial |
| Limiting speed | 18400 1/min |
| Reference speed | 16000 1/min |
| Fatigue limit load | 485 N radial |
| Mass | 0.133 kg |
FAG 6205-C-2ZC3 bearing cross reference
302K
25 mmx 52 mmx 15 mm
301K
25 mmx 52 mmx 15 mm
62207-2RS-C3
25 mmx 52 mmx 15 mm
62306-2RS-C3
25 mmx 52 mmx 15 mm
63005-2RS-C3
25 mmx 52 mmx 15 mm
62205-2RS-C3
25 mmx 52 mmx 15 mm
62304-2RS-C3
25 mmx 52 mmx 15 mm
62204-2RS-C3
25 mmx 52 mmx 15 mm
63003-2RS-C3
25 mmx 52 mmx 15 mm
62303-2RS-C3
25 mmx 52 mmx 15 mm
63002-2RS-C3
25 mmx 52 mmx 15 mm
