IKO CF6B cam follower bearings
Also known as : CF6B, KR16
- Inside Diameter: 6 mm
- Outside Diameter: 16 mm
- Width:
- Basic dynamic load rating: 3660 kN
- Basic static load rating: 3650 kN
IKO CF6B

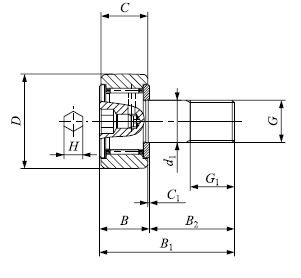

IKO CF6B details
| model | CF6B Cylindrical outer ring |
|---|---|
| D | 16 mm |
| C | 11 mm |
| d1 | 6 mm |
| G | M 6x1 |
| G1 | 8 mm |
| B | 12.2max mm |
| B1 | 28.2max mm |
| B2 | 16 mm |
| B3 | -- mm |
| C1 | 0.6 mm |
| g1 | -- mm |
| g2 | -- mm |
| H | 3 mm |
| rs min | 0.3 mm |
| fmin | 11 mm, Mounting dimension |
| Maximum tightening torque | 2.7 N.m |
| C | 3660 N, Basic dynamic load rating |
| C0 | 3650 N, Basic static load rating |
| Maximum allowable load | 1950 N |
| Mass | 18.5 g (approx.) |
