SKF KR16 PPSKA cam follower cam follower bearings
Also known as : KR16 PPSKA
- Inside Diameter:
- Outside Diameter: 16 mm
- Width: 28 mm
- Basic dynamic load rating: 3.14 kN
- Basic static load rating: 3.2 kN
SKF KR16 PPSKA cam follower
SKF KR16 PPSKA cam follower details
| Number |
KR 16 PPSKA PPSKA: with a PA66 axial sliding and sealing ring on both sides, improved crowned profile of the outer ring running surface and a hexagonal recess in the head of the stud, no relubrication features |
|---|---|
| Type | SKF cam follower |

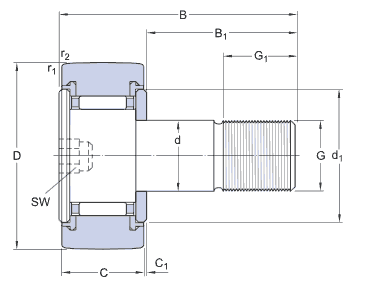

| Dimensions | |
| D | 16 mm |
| d | 6 mm |
| B | 28 mm |
| C | 11 mm |
| B1 | 16 mm |
| C1 | 0.6 mm |
| d1 | 12.5 mm |
| G | M 6 |
| G1 | 8 mm |
| SW | 4 mm |
| r1,2 min | 0.15 mm |
| Calculation data | |
| Basic dynamic load rating, C | 3.14 KN |
| Basic static load rating, C0 | 3.2 KN |
| Fatigue load limit, Pu | 0.345 KN |
| Maximum dynamic radial loads, Fr max. | 2.9 KN |
| Maximum static radial loads, F0r max. | 4.15 KN |
| Limiting speed | 6000 r/min |
| Mounting information | |
| Recommended tighthening torque | 3 N.M |
| Included products | |
| Hexagonal nut | M 6x1 |
| Associated products | |
| Plug | VD1 |
| Mass | |
| Mass cam follower | 0.019 kg |
