SKF KRV30PPA cam follower cam follower bearings
Also known as : KRV30PPA
- Inside Diameter:
- Outside Diameter: 30 mm
- Width: 40 mm
- Basic dynamic load rating: 8.97 kN
- Basic static load rating: 14.6 kN
SKF KRV30PPA cam follower
SKF KRV30PPA cam follower details
| Number | KRV 30 PPA |
|---|---|
| Type | SKF cam follower fitted with a full complement of needle rollers |

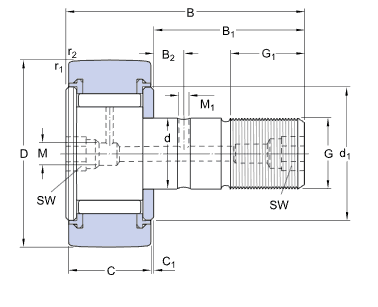

| Dimensions | |
| D | 30 mm |
| d | 12 mm |
| B | 40 mm |
| C | 14 mm |
| B1 | 25 mm |
| B2 | 6 mm |
| C1 | 0.6 mm |
| d1 | 23 mm |
| G | M 12x1.5 |
| G1 | 13 mm |
| M | 4 mm |
| M1 | 3 mm |
| SW | 6 mm |
| r1,2 min | 0.6 mm |
| Calculation data | |
| Basic dynamic load rating, C | 8.97 KN |
| Basic static load rating, C0 | 14.6 KN |
| Fatigue load limit, Pu | 1.66 KN |
| Maximum dynamic radial loads, Fr max. | 11 KN |
| Maximum static radial loads, F0r max. | 15.6 KN |
| Limiting speed | 3200 r/min |
| Mounting information | |
| Recommended tighthening torque | 22 N.M |
| Included products | |
| Grease fitting | NIP A1x4.5 |
| Hexagonal nut | M 12x1.5 |
| Mass | |
| Mass cam follower | 0.091 kg |
