SKF KRE62PPA cam follower cam follower bearings
Also known as : KRE62PPA
- Inside Diameter:
- Outside Diameter: 62 mm
- Width: 80 mm
- Basic dynamic load rating: 24.6 kN
- Basic static load rating: 44 kN
SKF KRE62PPA cam follower
SKF KRE62PPA cam follower details
| Number | KRE 62 PPA |
|---|---|
| Type | SKF Cam follower fitted with a needle roller and cage assembly, with an eccentric collar pressed onto the stud |

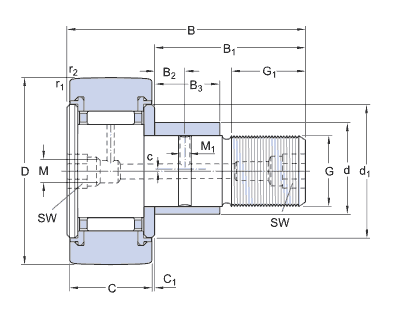

| Dimensions | |
| D | 62 mm |
| d | 28 mm |
| B | 80 mm |
| C | 29 mm |
| B1 | 49.5 mm |
| B2 | 11 mm |
| B3 | 22 mm |
| C1 | 0.8 mm |
| d1 | 44 mm |
| G | M 24x1.5 |
| G1 | 25 mm |
| M | 8 mm |
| M1 | 4 mm |
| SW | 14 mm |
| c | 1 mm |
| r1,2 min | 1 mm |
| Calculation data | |
| Basic dynamic load rating, C | 24.6 KN |
| Basic static load rating, C0 | 44 KN |
| Fatigue load limit, Pu | 5.5 KN |
| Maximum dynamic radial loads, Fr max. | 58.5 KN |
| Maximum static radial loads, F0r max. | 85 KN |
| Limiting speed | 2400 r/min |
| Mounting information | |
| Recommended tighthening torque | 220 N.M |
| Included products | |
| Grease fitting | NIP A3x9.5 |
| Hexagonal nut | M 24x1.5 |
| Mass | |
| Mass cam follower | 0.8 kg |
