SKF NUKRE47A cam follower cam follower bearings
Also known as : NUKRE47A
- Inside Diameter:
- Outside Diameter: 47 mm
- Width: 66 mm
- Basic dynamic load rating: 28.6 kN
- Basic static load rating: 33.5 kN
SKF NUKRE47A cam follower
SKF NUKRE47A cam follower details
| Number | NUKRE 47 A |
|---|---|
| Type | SKF Cam follower based on a double row full complement cylindrical roller bearing with two integral outer ring flanges, with an eccentric collar pressed onto the stud |

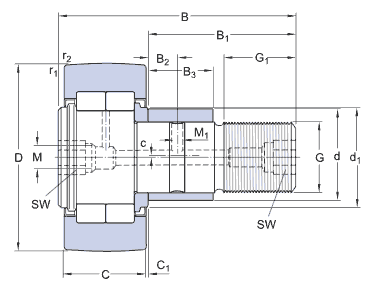

| Dimensions | |
| D | 47 mm |
| d | 24 mm |
| B | 66 mm |
| C | 24 mm |
| B1 | 40.5 mm |
| B2 | 9 mm |
| C1 | 0.8 mm |
| d1 | 27 mm |
| G | M 20x1.5 |
| G1 | 21 mm |
| M | 6 mm |
| M1 | 4 mm |
| SW | 10 mm |
| c | 1 mm |
| r1,2 min | 1 mm |
| Calculation data | |
| Basic dynamic load rating, C | 28.6 KN |
| Basic static load rating, C0 | 33.5 KN |
| Fatigue load limit, Pu | 3.9 KN |
| Maximum dynamic radial loads, Fr max. | 17.6 KN |
| Maximum static radial loads, F0r max. | 25 KN |
| Limiting speed | 3800 r/min |
| Mounting information | |
| Recommended tighthening torque | 120 N.M |
| Included products | |
| Grease fitting | NIP A2x7.5 |
| Hexagonal nut | M 20x1.5 |
| Mass | |
| Mass cam follower | 0.4 kg |
