EW series NSK cylindrical roller bearings BENEFITS

• Up to 30% increase in load rating.
• Longer operating life – up to twice the bearing life.
• Cage strength is greater than major competitors.
• 10 - 25% higher limiting speed than conventional series.
• 30 - 40% noise reduction (3 - 7dB quieter) & vibration reduction.

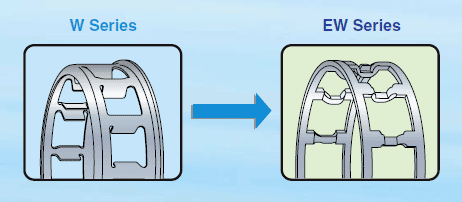

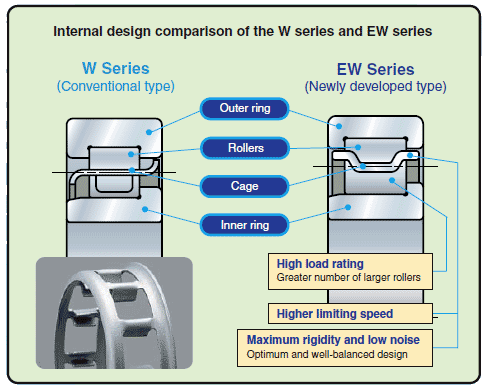

NSK's newly developed cylindrical roller bearing, the EW series, which combines the strengths and technologies of previous cages into a one-piece steel cage. NSK has achieved a new design involving even newer concepts, while maintaining excellence in function and service life. NSK's EW series can meet your high load-carrying capacity needs for the new era.

NSK EW series bearing interchange guide

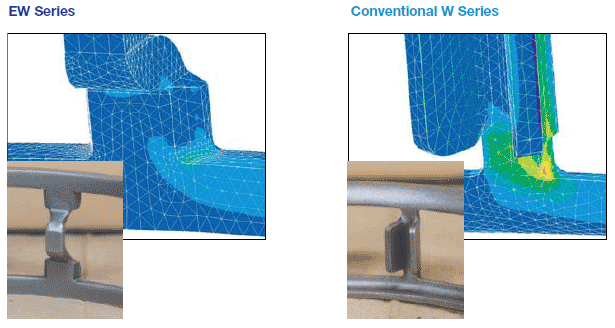

Results of FEM analysis

Tests confirm that the stress levels of NSK's EW series cages are 40% lower than that of cages in conventional W series.

NSK's EW series showed greater cage strength performance than that of our major competitors.

The EW series is 3 to 7 dB quieter than that of our major competitors.

The limiting speed of the EW series is 10-25% higher than that of conventional W series.

The load rating of the EW series is 10-60% higher than that of conventional W series.
