NTN 423096 Tapered roller bearing
Also known as : 423096
- Inside Diameter: 480 mm
- Outside Diameter: 700 mm
- Width: 206 mm
- Basic dynamic load rating: 3050 kN
- Basic static load rating: 6700 kN
NTN 423096
NTN 423096 details
| Boundary dimensions (mm) | Basic load ratings (kN) |
Basic load ratings (kgf) |
Limiting speed (min-1) |
Mass (kg) <approx.> |
||||||
|---|---|---|---|---|---|---|---|---|---|---|

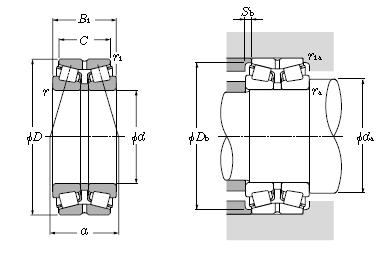

| Inner dia. (d) | Outer dia. (D) | Width (B) | Chamfer (rs_min) | Dynamic (Cr) | Static (Cor) | Dynamic (Cr) | Static (Cor) | Grease | Oil | |
| 480 | 700 | 206 | 6 | 3050 | 6700 | 310000 | 685000 | 330 | 450 | 236 |
| Abutment and fillet dimensions (mm) |
||||||||
|---|---|---|---|---|---|---|---|---|
| da min |
da max |
Da min |
Da max |
Dx <approx.> |
Cy max |
Cz min |
ras max |
rnas max |
| 508 | 5 | |||||||
Xinyouya have NTN 423096 bearings in stock. As the inner clearance of NTN double row tapered roller bearings (Outward facing type) is adjusted to a set value, the bearings must be used in combination with components of the same product number, as marked.
NTN 423096 bearing cross reference
68450R/68709R
480 mmx 700 mmx 206 mm
H414245/H414210
480 mmx 700 mmx 206 mm
387/382A
480 mmx 700 mmx 206 mm
HM88630R/HM88610R
480 mmx 700 mmx 206 mm
02473R/02420R
480 mmx 700 mmx 206 mm
23100R/23256R
480 mmx 700 mmx 206 mm
387-384ED
480 mmx 700 mmx 206 mm
389-384DRB
480 mmx 700 mmx 206 mm
EE132083-132126D
480 mmx 700 mmx 206 mm
42362D - 42586
480 mmx 700 mmx 206 mm
L357049-L357019-B
480 mmx 700 mmx 206 mm
